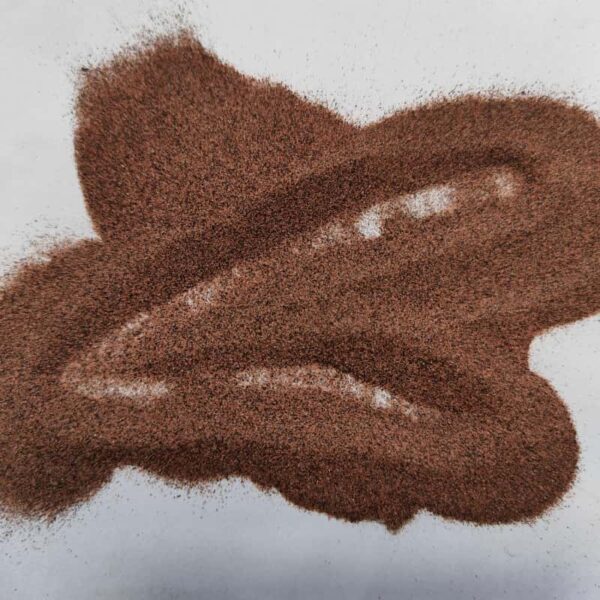

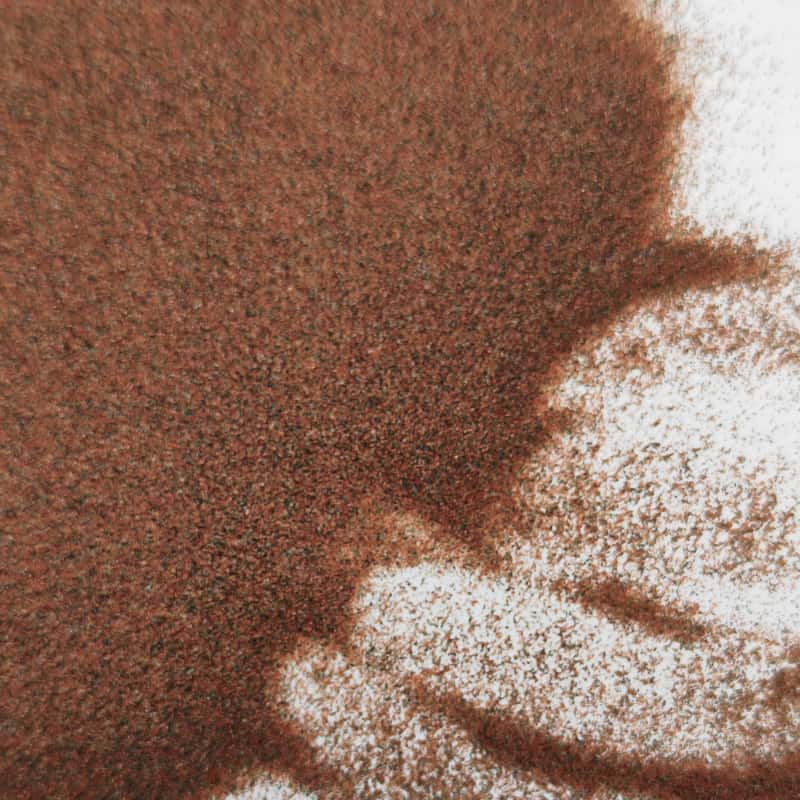

Garnet Sand 90/120 120/180 for Process Glass in Waterjets

Garnet Sand 90/120 120/180 for Process Glass in Waterjets

Garnet is a kind of mineral with good hardness and widely used for abrasives, refractory material, sandblasting and waterjet cutting,etc.Garnet’s unique characteristics improve production rates, reduce abrasive usage and lower disposal and clean- up costs. High purity rock garnet provides fast cutting, ideal for removing thin to medium thickness coatings, mill scale, and rust.

CHEMICAL COMPOSITION %

Iron (Fe₂O₃+FeO)……………………… 25-31%

Alumina Al₂O₃………………………….17-21%

Magnesium MgO………………………5-6%

Silica SiO₂ *……………………………….34-40%

Calcium CaO………………………..……5.0-10.0%

Manganese MnO……………………….0-1.0%

PHYSICAL CHARACTRTISTIC

Specific Gravity………………….. …….3.8-4.1g/cm3

Bulk Density………………………………1.8-1.9 g/cm3

Hardness (Mohs)………………………. 7.5-8.0

Melting point…………………………….1300°C

Color………………………………………… Red & Pink

Grain shape………………………………Sharp, Angular

Chloride content ………………………< 25ppm

Acid solubility(HCL)……………………< 1%

Conductivity …………………………….< 25 ms/m

Toxic substances…………………None

MINERALOGICAL COMPOSTION(TYPICAL)

Garnet………………………… 98-99%

Ilmenite………………………………….……<1%

Quartz ………….. ………………….…………… <0.2%

Others………………………………………. …< 2 %

STANDARD PACKING

1 Ton Bulk Jumbo Bag.

40 X 25 Kg PP bags packed in to 1 Ton Bag
