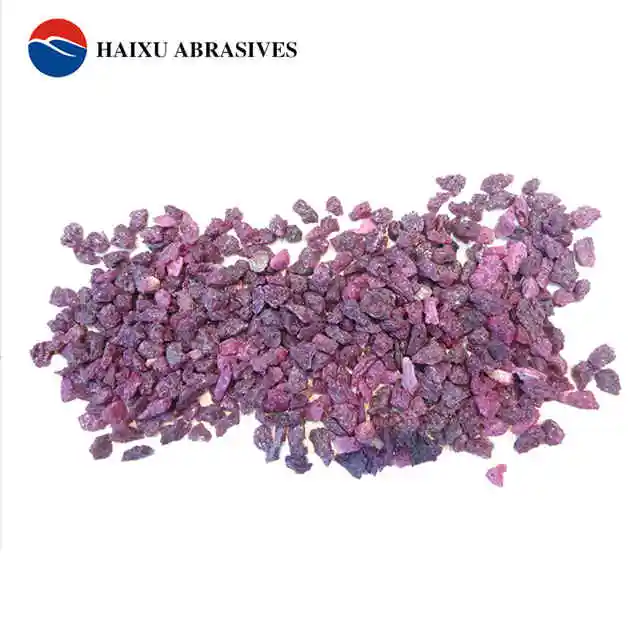

Pink Electrocorundum 33A 34a F220 Pink Fused Alumina/PFA Abrasives Grain
Product description
Haixu abrasives Chrome Corundum Pink Fused Alumina for Refractory Material is Bayer alumina,which is electrically fused in high temperature,being added with the right quantity of oxidized chromium. lt is pink. lts hardness is close to,but toughness higher than that or WA. The abrasive tools made of it feature excellent durability and high processing cleanness,which are suitable for the precision grinding of the measuring tools,lathe main shafts,instruments and apparatus parts,threading work pieces and samplers,etc.
Physical properties
Basic minerals | α-Al2O3 |
Crystal size μm | 600-2000 |
True density g/cm3 | ≥3.90 |
Bulk density g/ cm3 | 1.40-1.91 |
Chemical index
Low chromium | Medium chromium | High chromium | ||||||
Al2O3 （%） | Cr2O3 （%） | Na2O （%） | Al2O3 （%） | Cr2O3 （%） | Na2O （%） | Al2O3 （%） | Cr2O3 （%） | Na2O （%） |
≥98.50 | 0.20-0.45 | ≤0.50 | ≥98.20 | 0.45-1.00 | ≤0.55 | ≥97.40 | 1.00-2.00 | ≤0.55 |
1.Used for refractory,casting,foundry and Painting etc
Sizes:0-1mm 1-3mm 3-5mm 5-8mm
2.Used for abrasives,blasting,grinding,ceramic,rust removal,surface treatment,floor coating,abrasion resistant layer etc.
PSD(Particle Size Distribution)
F8 | +2800um | ≤20% | +2360um | ≥45% | +2360+2000um | ≥70% | -1700um | ≤3% |
F10 | +2360um | ≤20% | +2000um | ≥45% | +2000+1700um | ≥70% | -1400um | ≤3% |
F12 | +2000um | ≤20% | +1700um | ≥45% | +1700+1400um | ≥70% | -1180um | ≤3% |
F14 | +1700um | ≤20% | +1400um | ≥45% | +1400+1180um | ≥70% | -1000um | ≤3% |
F16 | +1400um | ≤20% | +1180um | ≥45% | +1180+1000um | ≥70% | -850um | ≤3% |
F20 | +1180um | ≤20% | +1000um | ≥45% | +1000+850um | ≥70% | -710um | ≤3% |
F22 | +1000um | ≤20% | +850um | ≥45% | +850+710um | ≥70% | -600um | ≤3% |
F24 | +850um | ≤25% | +710um | ≥45% | +710+600um | ≥65% | -500um | ≤3% |
F30 | +710um | ≤25% | +600um | ≥45% | +600+500um | ≥65% | -425um | ≤3% |
F36 | +600um | ≤25% | +500um | ≥45% | +500+425um | ≥65% | -355um | ≤3% |
F46 | +425um | ≤30% | +355um | ≥40% | 355+300um | ≥65% | -250um | ≤3% |
F54 | +355um | ≤30% | +300um | ≥40% | +300+250um | ≥65% | -212um | ≤3% |
F60 | +300um | ≤30% | +250um | ≥40% | 250+212um | ≥65% | -180um | ≤3% |
F70 | +250um | ≤25% | +212um | ≥40% | +212+180um | ≥65% | -150um | ≤3% |
F80 | +212um | ≤25% | +180um | ≥40% | +180+150um | ≥65% | -125um | ≤3% |
F90 | +180um | ≤20% | +150um | ≥40% | +150+125um | ≥65% | -106um | ≤3% |
F100 | +150um | ≤20% | +125um | ≥40% | +125+106um | ≥65% | -75um | ≤3% |
F120 | +125um | ≤20% | ≥40% | ≥40% | +106+90um | ≥65% | -63um | ≤3% |
F150 | +106um | ≤15% | +75um | ≥40% | +75+63um | ≥65% | -45um | ≤3% |
F180 | +90um | ≤15% | +75um | * | +75+63um | ≥40% | -53um | * |
F220 | +75um | ≤15% | +63um | * | +63+53um | ≥40% | -45um | * |
Mainly Applications
-various grinding wheels,vitrified grinding wheels and coated abrasives
-Dry&wet blast abrasive -Fine blasting
-Refractories and Furnace Linings
-Glass & Ceramics:Decorative marking&Frosting & line marking
-Metals:Removal of hard deposits/investment/paint/scale/rust/solder/weld/flex/
-Castings and Forgings -Lapping and Polishing/Lapidary/Optical
-Nuclear and Power Generation -Oil and Gas Industries
-Plastics & Composites: Preparation for paint or metal sprayings
packing&delivery
Packing Details : 25KGS PVC BAGS+1MT BIG BAG Delivery Details :3-5days for small order which has stock If have requested,we can do as customer’s requested
